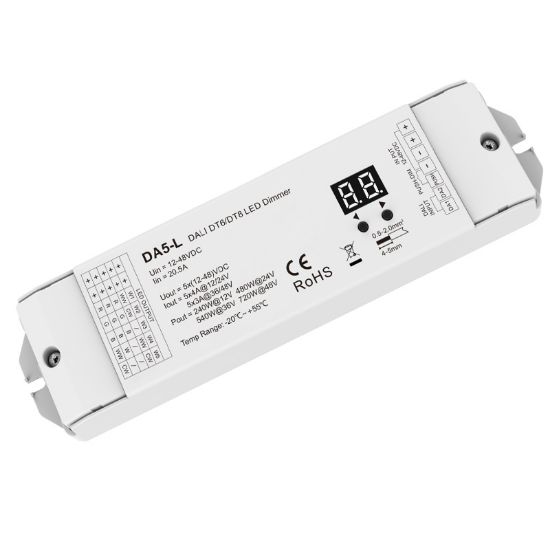

5 Channel Constant Voltage DALI LED Dimmer
Model No.: DA5-L
Features
● 5 channel constant voltage DALI LED Dimmer with digital display.
● 1 DALI address, DT6 dimming / DT8-TC color temperature / DT8-RGB/ DT8-RGBW/ DT8-RGB+CCT light type selectable.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI
products from other international incorporation.
● DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
● Connect with external push switch to achieve on/off, brightness, color temperature and RGB color adjustment.
● PWM digital dimming, standard DALI logarithmic dimming curve.
● PWM frequency 1000/2000/4000/8000/16000Hz selectable.
● Over-load / Short circuit / Reverse protection, recover automatically.
