Specification:

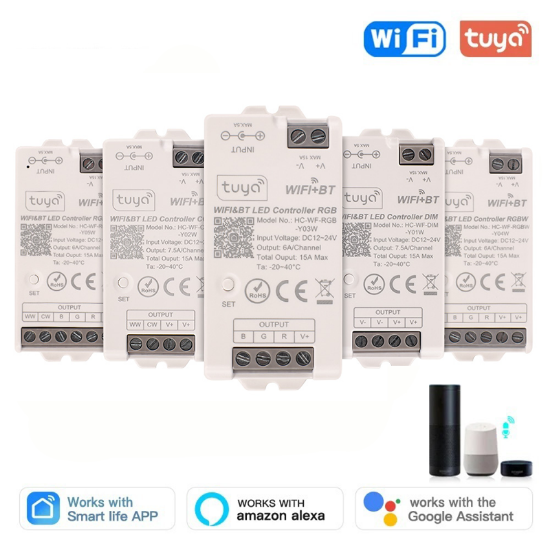

Type: Single Color, CCT, RGB, RGBW, RGBCCT LED Strip Controller
Product Model: Y01W-Y05W(Wifi), Y01Z-Y05Z (Zigbee)
Brightness: 0~100% adjustable
Input Voltage: DC12V~24V (5.5*2. 1mm)
Output: 1-5 Channel
Output current: <6A / CH or <7.5A / CH, Max 15A in total
Output power: 12V<180W, 24V<360W
Static power consumption: <1W
Operating Temperature: -20~40℃
Remote size: 74.5*35.6*16.5mm
App: Smart Life" APP or "Tuya Smart"
Compatible with Alexa & Google Assistant
Alexa, turn light on / off
Alexa, set light to 1%-100%
Alexa, dim/brighten light
Alexa, increase/decrease light
Features:
1. This Controller supports to control DIM(Single Color) CCT RGB RGBW RGBCCT LED Strip. Adjust light color, brightness, color temperature 2700K-6500K. 16 Millions of colors to choose. Biorhythm. Tap-to-Run and Automation. Secene customization. Sleep/wakeup plan. Do not disturb mode. Power: 6A/Channel. Total output max 15A. DC12V 180W max. DC24V 360W max.
2. This Tuya Wifi LED Controller can Support Third Part Voice Control like Alexa,Google Home.
3. Auto-transmitting function. One controller can transmit the signal from the remote control to the another controller within 99ft(30 meters). As long as there is a LED strip controller within 99ft(30 meters), the control distance can be limitless.Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times,controlled by the same controller at the same dynamic mode and with the same speed.
4. APP control. Smart life APP, Tuya Smart APP. Group Control, Group Setting. It is possible to control multiple controllers with one phone. Turn on/off, adjust the brightness, change the color temperature of the light strip through APP.
5.Multiple functions. Group Control. Device sharing,tap-to-run,automation,16 millions of colors,2700K-6500K,Dim brightness.Memory function in case of power-down. DC12V DC24V Power Supply, DC12V LED strip please must use DC12V Power supply.
